Finding the Best Single DIN Head Units for Every Dash and Budget

1. Best Overall: Kenwood Excelon KMM-X705 Digital Media Receiver

Three pairs of 5-volt preouts inside a chassis just 3-15/16 inches deep make the KMM-X705 our best overall pick, since the same deck that lifts your stock speakers today can anchor a fully amplified system later.

The Excelon KMM-X705 is aimed at the driver who wants the best single DIN head unit for sound quality and has no use for a screen. Kenwood's published specifications rate all three preout pairs at 5,000mV into a 10k-ohm load. Only the KDC-X705 and Sony's XAV-AX8500 match that level in this guide.

That voltage is the reason we ranked it first. A 5V signal lets an external amp run its gain lower than a 2V deck would require, and lower gain means less alternator whine and hiss reaching your tweeters. Each output carries its own crossover, so a 4-channel amp for the doors and a mono amp for a sub can be added one at a time.

Tuning is just as complete. The 13-band EQ spans 62.5Hz to 16kHz in ±9dB steps, and digital time alignment delays the nearer speakers so vocals center on your seat instead of the driver's door panel.

Drive EQ then lifts the frequencies that tire and wind noise mask at highway speed. That helps most in trucks and older sedans with thin sound deadening.

If factory speakers are staying for now, the internal amp holds 22 watts per channel across the full band at under 1% distortion, tied for the strongest published figure among our screenless picks. That's clean enough for daily listening, but it won't drive a subwoofer, so the preouts remain the real upgrade path.

The chassis measures 100mm deep. Owner feedback we gathered includes installs in a Jeep Wrangler and a 2015 F-150, the kind of dash where a full-depth CD unit fights for space behind the opening.

Radio gets more attention here than on most decks. Built-in HD Radio pulls digital FM at a 75dB stereo signal-to-noise figure with no subscription, and SiriusXM is ready once you add Kenwood's tuner.

Alexa answers a spoken wake word through the Alexa app on your phone. Kenwood Music Mix keeps five phones connected, so passengers can take turns queuing tracks. The two USB ports let one charge at 1.5 amps while the other plays FLAC files up to 96kHz/24-bit.

The weaknesses are mostly about age. Bluetooth 4.2 is dated next to the 5.0 radio in the Power Acoustik further down, and one long-term owner noted pairing gets fussy with more than two phones stored in memory. The display shows 1.5 lines of text, which makes scrolling a large USB library by artist slow. There's also no CD slot, a need the KDC-X705 covers.

What we liked most is how little the KMM-X705 asks you to change later. Buy it for Bluetooth and HD Radio today, and it's still the right source unit the day the amps arrive.

2. Best for Sound Tuning: Pioneer MVH-S522BS Digital Media Receiver

Why stop at 13 EQ bands when the MVH-S522BS opens 31 of them in Pioneer's Smart Sync app, the finest frequency control of any screenless deck in this guide?

Compared with the Kenwood above, the Pioneer MVH-S522BS gives up HD Radio and 1V of preout voltage in exchange for far deeper EQ control. Pioneer puts a 13-band graphic EQ on the deck, and the Smart Sync app expands it to 31 bands, close to one band per third of an octave across the audible range.

That resolution reaches problems a 13-band curve can't isolate. A door-panel resonance near 315Hz, or a harsh windshield reflection around 4kHz, can be cut narrowly in the app without dulling the notes on either side.

For bass builds, we consider this the best single DIN head unit for subs in the middle of our price range. Three 4V preout pairs feed front, rear, and sub amps. Sub phase control lets you flip polarity when a trunk-mounted sub cancels against the door woofers somewhere between 60 and 80Hz, which often recovers more bass than turning the sub level up.

Switch the crossover from Standard to Network mode and the outputs divide into high-pass, band-pass, and low-pass sections. That's how you run a 3-way active system with separate tweeter, midbass, and sub amps, and no other screenless pick here offers that split.

A 24-bit DAC handles hi-res FLAC and WAV files from the front USB port, which also charges your phone at 1.5 amps. The rotary volume knob sits where your hand expects it, so a volume change never needs a glance away from the road.

The weak spot is internal power. Pioneer rates the built-in amp at 14 watts RMS per channel under CTA-2006, the lowest published figure among our 4 screenless picks. Factory speakers stay clean at moderate volume but flatten out on the highway, so we see this deck as a source for amplifiers first.

Alexa only works through the Smart Sync app on a paired phone, so voice control disappears whenever the app is closed. There's no HD Radio tuner either, although SiriusXM is ready with the add-on tuner, and Bluetooth holds two phones at once from a memory of five.

This single DIN head unit is suitable for owners who will actually open the app and tune. If you'd rather set bass and treble once and leave them alone, the Kenwood and JVC decks ask less of you.

Our research points to the MVH-S522BS whenever a subwoofer or active 3-way system is already on the build list.

3. Best Value: JVC KD-X380BTS Digital Media Receiver

If your budget covers an entry-level Bluetooth deck but your plans include a 4-channel amp and a subwoofer, the KD-X380BTS is the entry-priced pick here with three 4-volt preout pairs ready for both.

The JVC KD-X380BTS sells for about two-thirds of what the Pioneer MVH-S522BS costs and still matches its three 4V preout pairs. That combination makes it the best value single DIN car stereo we found for a driver who starts with Bluetooth today and adds amplifiers over the next few years.

Those outputs are the heart of the purchase. Front, rear, and sub pairs each run at 4V, twice the starting signal of the 2V outputs on the Sony DSX-A415BT, so an amplifier's gain knob can stay nearer its quiet end. High- and low-pass filters keep deep bass out of small door speakers once a subwoofer takes over the bottom octaves.

If a full amp rack isn't in this year's budget, Subwoofer Direct mode offers a middle step. The internal amp switches to 50 watts max on each front channel plus a third 50-watt channel for a sub. That lets a modest passive subwoofer run without a separate amplifier.

What we liked is how much tuning JVC fits in at this price. The 13-band EQ comes with 11 presets as starting points. Digital time alignment calculates a delay for each speaker from its type and its distance to your seat. Sound Lift raises the apparent height of low-mounted door speakers toward the dash, which suits sedans with woofers down by your ankles.

The internal amp holds 22 watts per channel across the full band at under 1% distortion, the same rating as the Kenwood KMM-X705. Factory speakers stay clean at commuting volume, so the deck doesn't give up daily listening quality to reach its price.

Alexa sits behind a dedicated key on the faceplate. With the Alexa app running on your phone, one press handles a spoken request for the morning weather, a parking timer, or the next audiobook chapter.

Bluetooth 4.2 keeps two phones connected full-time. JVC's Streaming DJ lets up to five devices stay paired, so passengers can take turns sending songs from the back seat.

iPhone owners get a shortcut too. Plug the phone into the front USB port once and the deck completes Bluetooth pairing on its own.

JVC lists the chassis at 3-15/16 inches (100mm) deep, the same figure Kenwood gives the KMM-X705, while Crutchfield's own measurement comes in at 4.215 inches. It clears the same tight dashes in older trucks and compact imports.

The limitations are about extras more than performance. There's no HD Radio tuner, so broadcast listeners who want digital FM should step up to the Kenwood. JVC's warranty runs one year against Kenwood's two, and the RM-RK52 remote is an optional purchase, where Sony includes one with the DSX-A415BT.

Our research makes the KD-X380BTS the best single DIN car stereo for the money when your plans include amplifiers but your budget doesn't yet. You get the output stage of a pricier deck on day one and grow into it. For JVC's other receivers, including its HD Radio models, see the JVC receivers we rank highest.

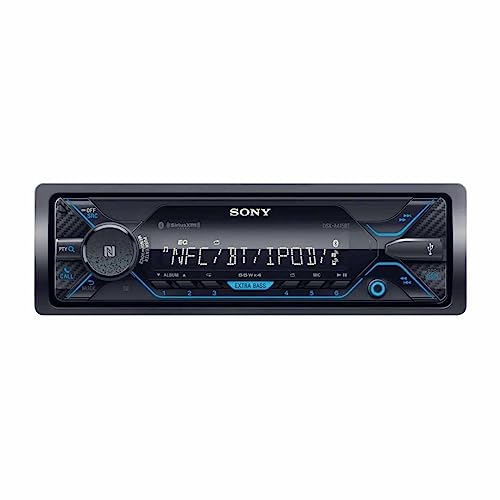

4. Best Under $100: Sony DSX-A415BT Single DIN Car Stereo Receiver

One NFC tap to pair your phone and one button for EXTRA BASS, and a car still running factory speakers has everything it needs from its next head unit.

Not every upgrade needs a preout voltage chart. The DSX-A415BT is the best budget single DIN head unit in this guide for drivers who want Bluetooth, USB playback, and more low end from the speakers the car came with, and who plan to stop there.

Pairing on Android phones takes one step. Tap the phone against the volume knob and NFC completes the Bluetooth link, which saves time in a family car where two or three drivers connect through the week. iPhones pair through the usual settings menu, since Apple doesn't open NFC pairing to car stereos.

EXTRA BASS is the feature we'd lean on first. Its two levels lift the low end within a range that factory 6.5-inch paper cones can handle at moderate volume. The internal amp is rated at 17 watts RMS per channel, which keeps daily listening clean on stock speakers.

The 10-band EQ can be adjusted from a phone app, which is easier than scrolling through menus on the faceplate. It also lets you pull back any upper-bass boom that the boost exaggerates in thin doors.

Installation is simple in most older dashes. The mech-less chassis measures 119mm deep (4-11/16 inches), about 3/4 inch deeper than the Kenwood KMM-X705 but well short of every CD unit here.
The sub output connects directly to a powered subwoofer, with a low-pass filter set at 80, 100, or 120Hz, which covers the most common first add-on. A 4-channel amp for the doors is a different story. The 2V rear preouts force that amp's gain higher to reach full output, and higher gain invites hiss.

Sony includes the RM-X231 card remote in the box, a small extra that the Kenwood, Pioneer, and JVC decks above sell separately. Passengers can skip tracks without reaching across the console.
The age of the design shows in its wireless hardware. Bluetooth 3.0 is the oldest version in this guide, two generations behind the Power Acoustik's 5.0 and older than the 4.2 radio in the Kenwood and JVC decks.

Calls run through a microphone built into the faceplate instead of a visor-mounted mic. That puts it farther from your mouth, which can let more road noise into a highway call.
We'd point you here only if an amplifier isn't in your future. For that buyer, the DSX-A415BT covers streaming, calls, and a clear bass lift at the entry end of our price range. Sony's wider range is covered in our Sony car stereo picks.

5. Best-Sounding CD Receiver: Kenwood Excelon KDC-X705 Single DIN

Three pairs of 5-volt preouts inside a chassis just 3-15/16 inches deep make the KMM-X705 our best overall pick, since the same deck that lifts your stock speakers today can anchor a fully amplified system later.

If your music still lives on discs and your system includes, or will include, external amps, this is the best sounding single DIN car stereo with a CD slot we found. The KDC-X705 shares its audio section with the KMM-X705 above, so the choice between them turns on the disc drive and about 2 inches of chassis depth.

Kenwood's CD figures back up the tag. The transport uses 8x oversampling, and Kenwood lists a 97dB signal-to-noise ratio and 0.01% total harmonic distortion at 1kHz for disc playback. That S/N figure sits within 1dB of the same deck's USB input, which tells you the CD path isn't the weak link in the chain.

The amp side is where disc players usually cut corners, and this one doesn't. All three preout pairs deliver 5V, so the gain controls on a 4-channel amp and a mono amp can sit near the low end of their range, where most amplifiers add the least noise. One CD receiver can then anchor a full front, rear, and sub build.

Tuning matches the mech-less Excelon band for band. The 13-band EQ covers 62.5Hz to 16kHz, and digital time alignment places the stage at the driver's seat instead of splitting it between doors. Drive EQ raises the frequencies that road noise buries past highway speed.
HD Radio is built in, which none of the other disc-playing units in this guide list. Digital FM stations come through with a 75dB stereo S/N rating and no subscription.

Alexa and Kenwood Music Mix carry over from the KMM-X705 too. Voice control and five-phone streaming don't require giving up the disc slot.

The costs are physical. At 155.5mm (6-1/8 inches) deep, the chassis needs a full CD-depth opening, 55mm more than the KMM-X705. USB sits on the front panel only, so a charging cable hangs across the dash instead of routing to the glovebox.

It's also the priciest screenless deck here, a modest premium over the mech-less Excelon. If you never play discs, that money is better spent on the KMM-X705.

Among the CD receivers we researched, this was the only one pairing 5V outputs with HD Radio, and that combination earns the KDC-X705 its place. If you plan to amplify a disc-based system, start here. For more on what those 5 volts do, read how preamp voltage affects amp gain.

6. Best Value CD Receiver: JVC KD-T920BTS Single DIN Car Stereo

Compressed tracks and older CDs lose the top octave of treble, and the KD-T920BTS answers that with K2 processing that upsamples 44.1kHz disc audio to 192kHz, the feature that makes it our value pick for disc collectors.

Picture a road-trip crew with five phones, a stack of CDs in the door pockets, and a driver who'd rather talk to the dash than press buttons. That's the buyer for the KD-T920BTS, and it covers all three for less than the Excelon.

K2 does more work on a disc player than anywhere else. JVC says the processing expands 44.1kHz CD data to 192kHz and recreates the treble above 20kHz that CD formatting cuts off, so older discs and MP3-era burns sound less closed-in at the top. Owners on Crutchfield rate the deck 4.5 stars across 169 reviews, and one owner comment there mentions skip-free disc playback.

JVC Streaming DJ keeps up to five Bluetooth devices connected while two phones stay linked full-time for calls. Anyone in the car can queue the next track without re-pairing, which turns a long drive into a shared playlist.

Alexa is built in and responds through the dedicated faceplate key once your phone runs the Alexa app, so you get voice control without buying a separate device. It can play Amazon Music, iHeartRadio, TuneIn, Audible, SiriusXM, and Pandora by voice, along with weather and local news.

Bluetooth Hands-Free Profile 1.7 improves voice quality and noise reduction on calls, a practical gain in a loud cabin compared with older HFP versions.

For amplifiers, a front preout pair joins a rear/sub pair. A 4-channel amp can take front and rear signals, or an amp can run the front speakers while a powered sub takes the second pair. The 13-band EQ and time alignment add proper tuning on top.

Two-zone lighting lets you set the buttons and accent strip separately, with 32,768 colors per zone. That makes it simple to match a dash with mixed amber and red instrument lighting.
The ceiling is output voltage. Both preout pairs run at 2.5V, half the Kenwood KDC-X705's 5V, so larger amp builds need higher gain settings and more attention to noise. HD Radio is absent too.

Stock is the last thing to check. We noted the KD-T920BTS listed out of stock at some retailers while Crutchfield showed it available. The KD-T925BTS sibling shares its core features if your preferred store runs dry.

Taken together, this is the CD receiver we'd hand to a family or a road-trip regular before the Excelon. For other JVC and Kenwood models near this price, browse our mid-budget car stereo picks.

7. Best Big-Screen Floating: Sony XAV-AX8500 Floating Stereo

Next to the BOSS floating unit below, the XAV-AX8500 costs roughly four times as much, and a 1280 x 720 screen, cable-free CarPlay, and 5-volt preouts are where that difference goes.

The XAV-AX8500 is the pick if you want the best single DIN Apple CarPlay head unit and your dash has room for a 10.1-inch panel. It carries the largest and sharpest screen in this guide, and owners on Crutchfield rate it 4.5 stars across 73 reviews.

Resolution is the first upgrade you'll notice. At 1280 x 720, the panel holds about 2.4 times the pixels of the 800 x 480 BOSS screen, so street names and album art stay crisp at a glance. Sony bonds the LCD directly to the glass touch layer, a gapless design that cuts the internal reflections that wash out ordinary screens in afternoon sun.

Size brings a fit question with it. The panel measures about 10.6 by 6.6 inches, so it needs open space in front of the dash that many compact cars don't have. Sony's 4-way installation adjustment and updated tilt and swivel joint help you clear vents and angle the screen toward the driver, but measure first.

CarPlay connects over Wi-Fi, and Android Auto runs wired or wireless, so your phone can stay in a pocket or on a charging pad for the whole drive. Sony also supplies a GPS antenna in the box to support navigation alongside that wireless link.

The catch is that CarPlay has no wired fallback on this model. If an iPhone's wireless link drops, the rear USB-C port still charges it at up to 3 amps, but plugging in won't start CarPlay. Android users keep both connection options.

The audio section is where the premium goes for anyone planning an amplified build. Three preout pairs run at 5V, matching the Kenwood Excelon decks, and the internal amp is rated at 20 watts RMS per channel. A 24-bit/192kHz DSP drives the 14-band EQ.

What we liked most is the time alignment, which adjusts in 1cm steps across five channels (four speakers plus the sub). That lets you shift the stage by less than half an inch at a time, which helps when the driver's seat sits much closer to one door than the other.

Bluetooth streaming supports LDAC as well as AAC, so compatible Android phones send music at higher bitrates than the standard SBC codec when you're not in Android Auto. iPhones stream over AAC.

For newer vehicles, iDatalink Maestro RR and RR2 compatibility keeps factory features such as steering wheel controls and, depending on the car, vehicle information displays. Three camera inputs, each with its own trigger, cover a rear camera, a front camera, and a third view such as a trailer hitch.

Sony backs all of this with a 3-year warranty, three times the coverage on the Pioneer picks. What the unit lacks is HD Radio, so broadcast-heavy listeners should add the SiriusXM tuner or look at the Kenwood decks.

Based on our research, the XAV-AX8500 is the floating screen we'd choose for a truck or SUV with a tall center stack and an amp build on the way. It sits near the top of our price range, just under the Pioneer flip-out. It earns that spot with the best display and the only iDatalink Maestro support among our picks. More options sit in our floating screen stereo picks.

8. Best Budget Floating: BOSS BVCP9700A-CFL Single DIN Stereo

Put a 7-inch floating CarPlay screen and a backup camera into a single DIN dash for less than any other touchscreen in this guide costs, and the BVCP9700A-CFL is the unit that does it.

At the entry end of this guide's touchscreens, the BVCP9700A-CFL includes the part most budget buyers end up adding anyway, a backup camera. It also costs roughly a quarter of what the Sony above does.

That camera is what separates the CFL from the plain FL version. It wires to the rear input and switches on automatically in reverse, which helps most in a pickup or older SUV that never had a factory camera.

A second input accepts a front camera, useful for judging a tight parking spot or the lip of a steep driveway.

The 7-inch screen floats above the dash on a single DIN chassis, and its angle adjusts so the panel faces the driver instead of the passenger seat. In a truck with a tall dash, a few degrees of tilt also keeps midday glare off the glass.

CarPlay and Android Auto run over a wired USB connection according to BOSS dealer listings, with Siri or Google Assistant handling calls, messages, and maps by voice. An external microphone ships in the box, and mounting it on the visor puts it much closer to your mouth than a faceplate mic.

For system growth, BOSS includes front, rear, and sub preamp outputs. BOSS doesn't publish the preout voltage, so we'd plan on running amp gain a bit higher than with the 5V Sony, but three pairs still allow a full amp build over time.

The 85-watt figure per channel is a peak rating with no RMS number beside it. Treat the internal amp as suited to factory speakers.

The compromises show up on the screen and in the tuning menu. An 800 x 480 panel on a 7-inch display looks soft for small map text, and it trails both the 1280 x 720 Sony and the 1024 x 600 Power Acoustik. The EQ offers preset curves plus balance and fader, and it lacks the 14-band control the Sony provides.

USB placement is the daily annoyance. The only port sits on the rear of the chassis, so you'll route an extension cable to the glovebox or console during install to keep wired CarPlay usable.

What we found is a unit that handles the basics of floating-screen CarPlay at a price the name brands don't approach, with a camera included. It's the right call when the budget is fixed and a camera is on the list. For more options from this brand, see the BOSS head units we've ranked.

9. Best Premium Flip-Out: Pioneer AVH-3500NEX DVD Receiver

Only one flip-out in this guide still plays DVDs alongside wired CarPlay and three 4-volt preout pairs, and Pioneer's motorized 7-inch AVH-3500NEX is that unit.

The AVH-3500NEX is the single DIN DVD car stereo for a driver who never gave up on discs but wants CarPlay anyway. It reads DVDs, CDs, and DivX discs, and among the flip-out units we researched, it was the only DVD player that also runs CarPlay and Android Auto. That makes it our choice for the best single DIN DVD player with phone mirroring.

The motorized 7-inch 16:9 screen folds out at startup and retracts when you park, keeping the panel out of view from anyone looking in through the windows. Wired CarPlay and Android Auto run through the rear USB port, and Pioneer's WebLink adds support for select apps outside those two platforms.

Tuning is the strongest part of the package. The 13-band EQ pairs with both auto and manual time alignment. Auto EQ measures your cabin through Pioneer's optional CD-MC20 microphone and sets a correction curve on its own, a real shortcut, since manual time alignment asks you to measure speaker distances with a tape.

Three preout pairs run at 4V, and the crossover switches between standard and 3-way network modes, the same active topology as the MVH-S522BS. Internal power is modest at 14 watts RMS per channel under CTA-2006, so the preouts do the heavy lifting in any serious build.
Safety and passenger features round it out. The dedicated backup camera input displays parking assist lines, and an RCA video output can feed a rear-seat monitor for DVD playback on long trips. A remote control ships in the box, Alexa works through Pioneer's Vozsis app, and Bluetooth holds two phones from a memory of five.

The drawbacks start with price. Pioneer's own store lists it at the top of our price range, a little above even the 10.1-inch Sony. CarPlay and Android Auto are wired only, so the cable stays in the car.

The platform also dates to 2019, when it replaced the AVH-3400NEX. That age shows most in the missing wireless phone projection, a feature the much cheaper Power Acoustik includes.
Our research found one clear use case for the AVH-3500NEX. If DVDs are still part of your car and you want Pioneer's tuning depth behind a hidden screen, nothing we researched matches it directly.

Buyers who stream everything should skip it, since the Power Acoustik below costs a fraction as much and adds wireless CarPlay. For every motorized option we track, see our full flip-out stereo rankings.

10. Best Wireless CarPlay Flip-Out: Power Acoustik CA1-77W Stereo

Because CarPlay and Android Auto connect wirelessly on the CA1-77W, the 7-inch motorized screen can fold away at shutdown with no USB cable trailing out of the dash.

Wireless projection changes how a flip-out works day to day. Your phone links to CarPlay or Android Auto over the air when the unit powers up, so the screen extends and maps appear with nothing to plug in. That also spares the USB port the cable strain a motorized screen can cause.

It's the best single DIN car stereo for iPhone owners who want cable-free CarPlay without paying for the Sony XAV-AX8500, and Android phones get the same wireless link.
The panel is the sharpest flip-out screen in this guide. At 1024 x 600 on a 7-inch capacitive display, map labels and album art look cleaner than on the 800 x 480 BOSS, though the 1280 x 720 Sony XAV-AX8500 is sharper still.

Four tilt positions let you set the viewing angle once, and last-position memory returns the screen to that spot every time it deploys.

An onboard GPS receiver is rare at this price. The head unit fixes its position through its own antenna, which helps the map dot stay accurate when your phone's GPS lock is weak on dense downtown streets. That makes it the best single DIN GPS head unit in this guide, although route guidance still comes from the map app on your phone.

Tuning goes wider than most picks here. The 16-band EQ offers ±12dB of boost or cut per band, three more bands than the Pioneer AVH-3500NEX. High- and low-pass crossovers apply to the 4V RCA outputs for front, rear, and sub amps.

Camera support covers both ends of the vehicle. Separate inputs accept a rear backup camera and a front-view camera, useful on a lifted truck with a blind nose. Power Acoustik also lists compatibility with OEM steering wheel interface modules.

The unknowns are real. Power Acoustik publishes only a 300-watt maximum figure for its Class A/B amp and no RMS rating, so internal power can't be compared with the other picks, and we'd plan on an external amp for anything past factory speakers.
The brand dates to 1983 but has a shorter record in premium head units than Pioneer or Sony. Long-term owner feedback on this model is thinner as a result.
Media playback is limited too. Power Acoustik lists MP3 and WMA audio from USB or microSD with no mention of FLAC, so a lossless library would need converting first. Video plays up to 720p in MP4 or WMV.

We recommend the CA1-77W to drivers who value wireless CarPlay over disc playback or brand heritage in a single DIN dash, and it costs well under a third of the Pioneer flip-out. For more units with onboard positioning, compare our picks for car stereos with built-in GPS.
