Still stuck with an old-school car stereo? Upgrading to a modern single-DIN head unit with Bluetooth or Apple CarPlay can totally transform your ride. In this guide, I’ll show you how to install a single DIN head unit step-by-step. No need to pay a mechanic. Let’s grab my tools and dive in!
Table of Contents

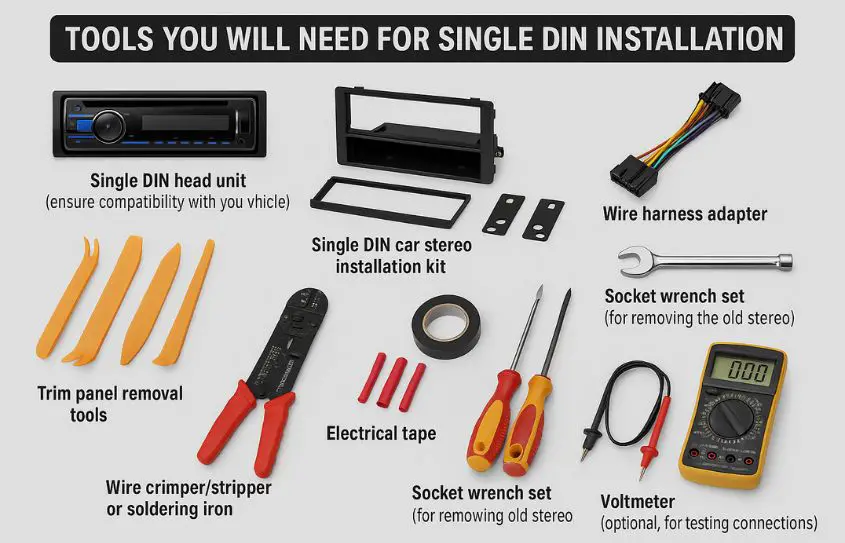

Tools You Will Need for Single DIN Installation
Having installed countless single-DIN stereos, I’ve learned that the right tools can make or break your install. Before you begin, make sure you’ve got these essentials on hand for a clean, safe setup.
- Single DIN head unit (ensure compatibility with your vehicle) – Check out our top single DIN stereo picks if you haven’t chosen one yet.
- Single DIN car stereo installation kit (includes a mounting sleeve, trim bezel, and brackets) – One of the best options on the market is the Scosche ICCR3BN Single DIN Install Dash Kit.
- Wire harness adapter (matches your car’s wiring to the new stereo)
- Trim panel removal tools (plastic pry tools to avoid scratches)
- Wire crimper/stripper or soldering iron
- Electrical tape or heat-shrink tubing
- Screwdrivers (Phillips and flathead)
- Socket wrench set (for removing the old stereo)
- Voltmeter (optional, for testing connections)

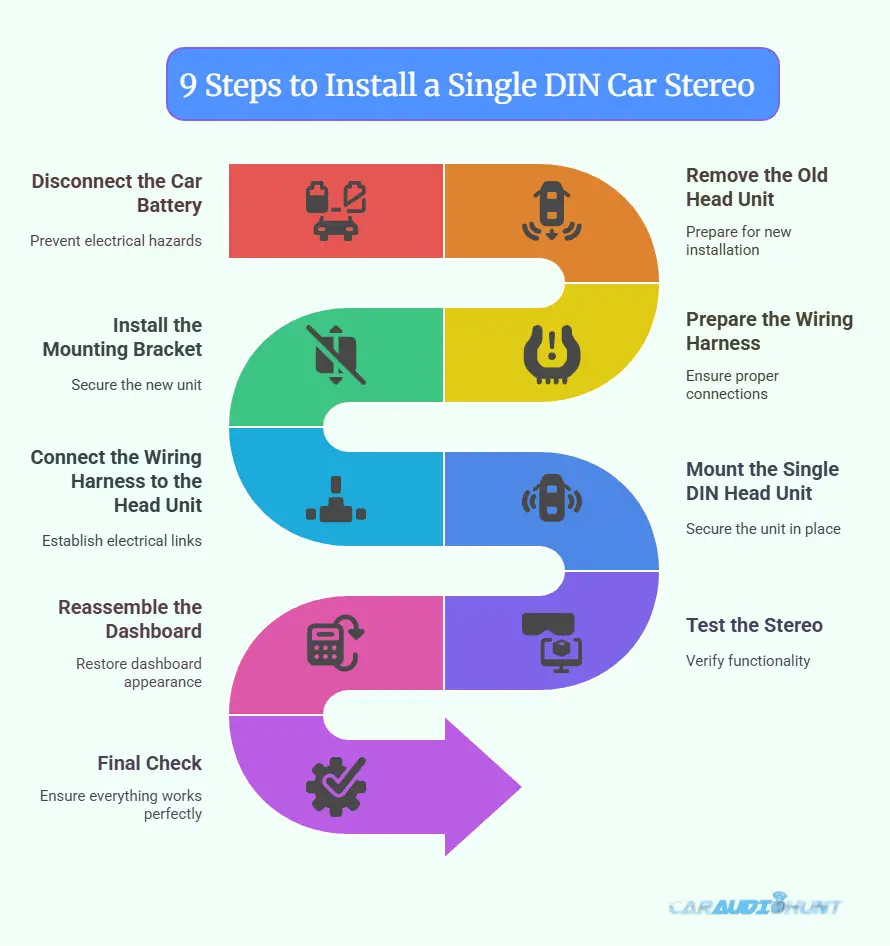

9-Step Single DIN Stereo Installation Guide
Now we’re getting to the good part. I’ve broken down the installation into simple, step-by-step instructions. Just follow along in order to keep things safe and hassle-free.
Step 1: Disconnect the Car Battery
Safety first! Before doing anything else, disconnect your car’s battery to avoid accidental short circuits while handling electrical components.
Start by locating the negative terminal (usually marked with a “–” symbol). Use a wrench to loosen the bolt and carefully remove the cable from the terminal. Tuck it aside so it doesn’t accidentally reconnect while you work. Never skip this step; even a simple spark can damage your car’s electronics or cause injury.

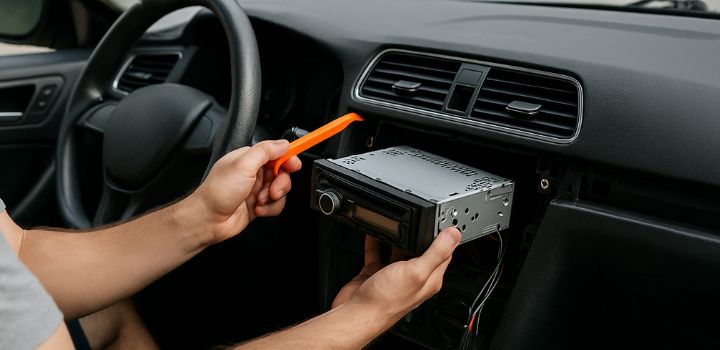

Step 2: Remove the Old Head Unit
If your car still has a factory stereo, it’s time to carefully take it out and make room for your new head unit.
Here’s how to do it safely
1. Use a plastic pry tool to gently remove the dashboard panels around the stereo. Take your time to avoid scratching or cracking anything.
2. Unscrew the mounting screws holding the old unit in place. These are usually visible once the trim is off.
3. Slide the head unit out of the dash slowly. Be cautious not to snag or stress any attached wires.
4. Disconnect all wiring connectors from the back. You’ll typically find the power harness, speaker wires, and antenna plug.
Step 3: Prepare the Wiring Harness
Here comes the part where most DIYers pause; but don’t worry, wiring isn’t as intimidating as it seems. With the right prep, you’ll have everything connected safely and neatly.
Your new single DIN stereo should include a wiring harness. Your job is to match each wire from the stereo to the corresponding wires in your car. If you’ve got a plug-and-play adapter, great! it’ll save time. If not, you’ll need to wire it manually. Here's how:
- Strip the ends of the wires using a wire stripper which is just enough to expose the copper.
- Match each wire by function: power, ground, speaker, etc. Most wires are color-coded, but double-check your car’s wiring diagram to be sure.
- Crimp or solder the wires together for a solid, lasting connection. I personally like soldering. It takes a bit longer but holds up better over time.
- Wrap everything securely with heat-shrink tubing or quality electrical tape. Clean wiring doesn’t just look good, rather it helps prevent future issues.

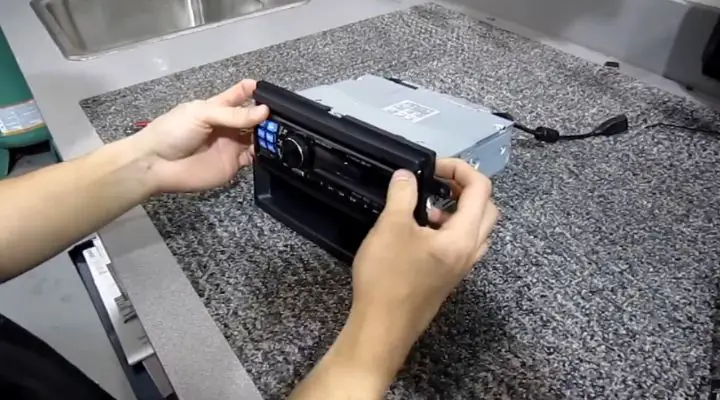

Step 4: Install the Mounting Bracket
Now that your wiring’s sorted, let’s get your new stereo ready to slide in. If you’re using a single DIN installation kit (which I highly recommend), it should include a mounting bracket to keep your head unit snug and secure inside the dash.
Here’s what to do:
- Position the bracket inside the dashboard opening where the old unit was.
- Align it carefully to ensure a proper fit—don’t force it.
- Secure it with screws, making sure it’s firmly anchored and doesn’t wiggle.
Step 5: Connect the Wiring Harness to the Head Unit
Now that the wiring harness is ready and the bracket is installed, it’s time to connect everything to the single DIN car stereo. Attach the wiring harness to the back of the new head unit, making sure to match the colors and connectors correctly.
If your vehicle has an antenna cable, plug that into the stereo as well. Double-check that the connections are secure and properly aligned.

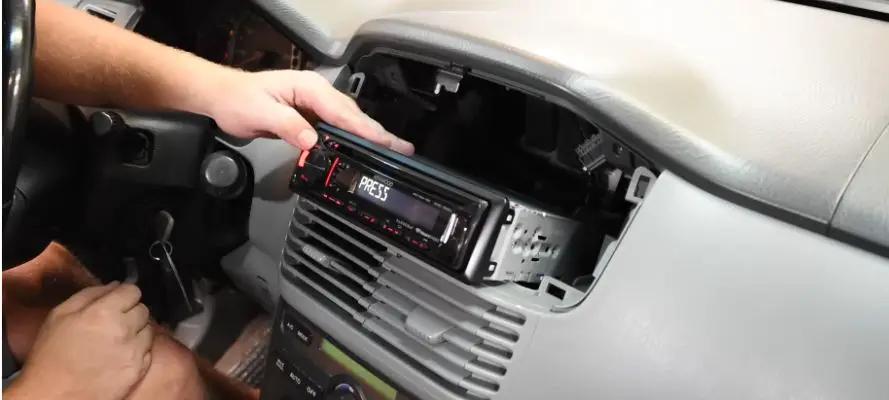

Step 6: Mount the Head Unit
With everything wired and connected, you can now mount your single DIN head unit into the bracket. Gently slide the head unit into the mounting bracket and make sure it clicks into place.
Use screws to secure the head unit in place, ensuring it’s tightly fastened and won’t come loose while driving.
Step 7: Test the Stereo
Before you button everything up, it’s time to make sure your hard work paid off.
Start by reconnecting the car battery, then turn on the ignition. Power up your new single DIN head unit and test all the key functions:
- Sound output (all speakers)
- Bluetooth pairing
- Touchscreen responsiveness (if applicable)
- Radio signal and station scanning
If the unit doesn’t power on, don’t panic. Double-check your wiring especially the power and ground. Also inspect the fuse, both on the stereo and in the car’s fuse box.
Step 8: Reassemble the Dashboard
Once the single DIN car stereo is installed and working correctly, it’s time to reassemble the dashboard. Snap the panels back into place, ensuring that everything fits securely and looks tidy.
Step 9: Final Check
After the head unit is reassembled, take the car for a quick drive to ensure the stereo is functioning well and there are no issues with the sound or connections. You may also want to adjust the settings of the head unit, such as volume, equalizer, and Bluetooth pairing, to personalize your setup.
Additional Tips for DIY Installers
- Use a Wiring Harness Adapter: If you're not familiar with wiring, consider using a wiring harness adapter designed for your car’s make and model. This will save you time and ensure a professional-level connection.
- Check the Fuse: If the unit doesn’t work after installation, check the fuse box for a blown fuse. Some cars have a dedicated fuse for the stereo system.
- Handle with Care: Be gentle when working with the dashboard and stereo unit. Applying too much force can cause damage to the panels or the stereo itself.
- Consider a Dash Kit: If the single DIN unit doesn’t fit perfectly, you may need to buy a custom single DIN mounting kit or dash kit designed for your car.
Troubleshooting Common Issues
- No Power? Double-check wiring connections and fuses.
- Poor Sound Quality? Verify speaker wire polarity (positive/negative).
- Loose Unit? Tighten the DIN cage tabs or add foam padding.
Wrapping Up
Installing a single DIN head unit is a doable DIY project that can seriously upgrade your driving experience. Whether you're after better sound, Bluetooth, or a modern look, this step-by-step guide sets you up for a clean and secure install.
Take your time, follow the instructions, and always double-check your connections. When in doubt, consult the stereo’s manual or a pro.
With a bit of patience, you'll be enjoying your new system in no time.
