If you have no prior experience with capacitors and have no clue how to charge a car's audio capacitor, this guide will solve all your worries.

Capacitors are like mini power banks that can give instant power supply. It delivers a quick burst of current at peak demands, like when playing high bass notes. The quick rush of current makes it a very dangerous reserve of power, and it is absolutely crucial to charge it in the most accurate way.

To expedite your work, we have broken down the entire charging process into 7 easy-to-follow steps and included a guide for each tool. Before jumping into the main steps, we have answered the most asked question about the use of a resistor in charging a capacitor.

There are two commonly used methods for charging a capacitor: one is the Resistor method, and the other is the Light Bulb method. They are known as charging tools and often come with the capacitor in the package. You will have to follow more or less the same steps, no matter which method you choose.

The main idea behind using them is to limit the current flow. The capacitor is capable of discharging current at high speed and high rate. When connected to a charging device without a media of resistance, it can instantly fire up the system by surging a huge current. You need to create some sort of resistance (Resistor or Test Bulb) to prevent that. So, you should always charge a car audio capacitor with a resistor or some sort of resistance.

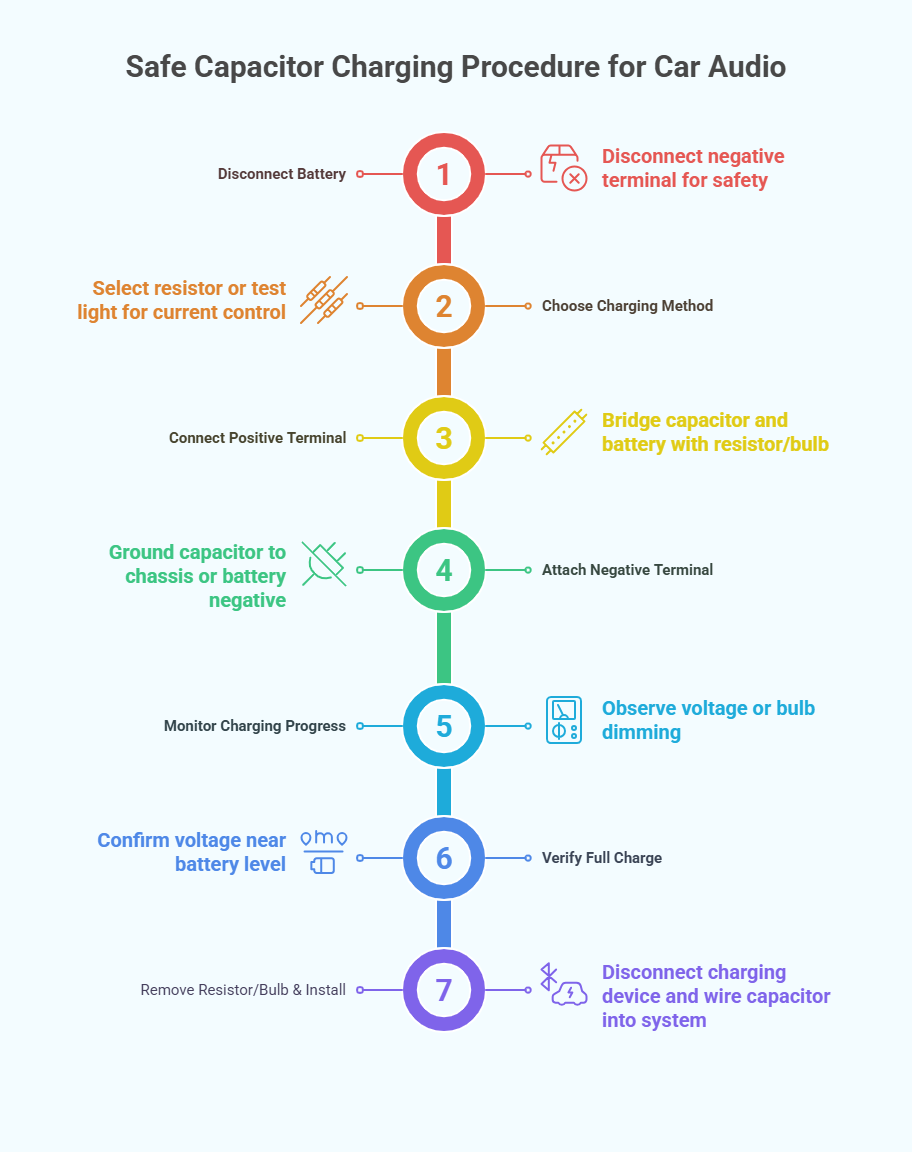

7 Steps To Charge a Car Audio Capacitor

We will now explain the complex charging process in 7 simple steps. Charging a capacitor is a risky process, as a simple misstep can electrocute you. Do not rush, and make sure to follow this guide step-by-step to avoid any unwanted accidents.

Step 1: Preparing the Tools

Before delving into the charging process, it is better to keep all the necessary tools at your disposal. You should have the below-mentioned tools ready.

  • Resistor: Usually, the manufacturer mentions the required size in the manual. If not, you may need a capacitor of 30 ohm to 1kohm, 1 watt.
  • Test Bulb or Light: If you are using a resistor, then you do not need to use a test bulb. The perk of using it is it gives a visual indication of charging. The light gradually dims as the capacitor charges.
  • Voltmeter or Multimeter: They help you know how much the capacitor is charged by showing voltage readings.
  • Jumper Cables: They are used to connect the capacitor to the battery.
  • Wire Connectors: These include ring terminals, alligator clips, and spade connectors, depending on your setup.
  • Insulated Gloves: They protect you from accidental electric discharges.

Step 2: Ensuring Safety First

If it is your first time charging a capacitor, you may want to take extra precautions to ensure your safety. You should wear insulated gloves to avoid any burning, and also make sure to use a well-ventilated open space to minimize the chance of inhaling any harmful fumes.

Step 3: Disconnecting the Battery

You should disconnect the battery to make sure no active current flows through the car's electrical system before starting the initial charging process.

First thing first, you should turn off the engine before disconnecting the battery cables. It is important to first detach the ground cables, or you can risk flaming. After that, you need to loosen the nut of the negative terminal by using a wrench anti-clockwise and gently pull out the ground cable. Also, make sure that the detached ground cable does not touch any metal part of the car.

Disconnect the Battery

Step 4: Connecting the Resistor

The most crucial steps start from here. In this step, you will need jumper cables and the resistor itself to work with.

You should check the resistor for any probable damage, burning, or signs of wear. Do not use the resistor if there is the slightest sign of damage. Then, to avoid any entanglement of wires while working, spread the jumper cables.

By using a clip or wrapping the wire around, connect one end of the resistor to the positive terminal of the capacitor. Use a clip or twist the wire to attach the other end of the resistor to one end of a jumper cable.

Now, you may choose to use a test bulb instead of a resistor. In that case, everything else remains the same except the connection process. Using a clip, connect the side contact part of the test bulb to the positive terminal of the capacitor. Again, using a clip, connect the threaded base of the test bulb to one end of a jumper cable.

In both cases, ensure that the jumper cable's free end does not interact with any metallic parts of the vehicle to prevent unintentional current flow.

Connecting the Resistor

Step 5: Charging the Capacitor

Start by attaching one end of a jumper cable to the negative terminal of the capacitor. You should connect the other end of the jumper cable to the battery's negative terminal. It will create grounding for the charging procedure.

In the previous step, you secured a free end of a jumper cable that was connected to the resistor. Now, you will have to use that free end of the cable for charging.

You need to firmly touch the jumper cable's free end to the car battery's positive terminal. You will see the capacitor voltage is gradually increasing, and in a few minutes, it will equal the battery's voltage (generally 12V). Using a resistor requires simultaneous proceeding of step 6.

However, If you are using a test bulb, this step is slightly different for you. You should gently hold the free end of the wire from the test bulb to the positive terminal of the car battery. As you do this, the test bulb will indicate charging by illuminating its bulb. In a minute or less, you will notice that the bulb is slowly dimming. When you have fully charged the capacitor, the light will go off.

Charging the Capacitor

Step 6: Monitoring the Voltage

This step will ensure that the charging process is a success. If you have used a test bulb, then you can skip this step. Because the illuminated light already has ensured successful charging.

While charging, it is important to monitor the quantity of charge. To do that, you can use a voltmeter or multimeter. Make sure that your monitoring device is set on DC voltage mood and calibrated around 12V-15V (the standard range for charging a capacitor).

At a time, hold the positive probe to the positive terminal and the negative probe to the negative terminal. The device will show the real-time voltage of the capacitor, and the reading will increase with the charging.

You should charge the capacitor to 12V, which might be the voltage of your car battery. Any more than that will overpower the capacitor, causing a potential burst.

Step 7: Finishing the Charging Process

Now you will have to safely disconnect the wirings. Be careful to first disconnect the wire from the positive terminal of the capacitor. You initially connected it via the resistor/test bulb to the battery's positive terminal.

After that, you should remove the jumper cable connecting the capacitor's negative terminal to the battery's negative terminal.

If you have entirely disconnected both positive and negative terminals of the car battery, it is time for you to reconnect them. Again, start by reconnecting the positive terminal first, then go for the negative one.

Now, all is left for you to install the capacitor in your car's audio system. You should check out our guide to Installing a Car Audio Capacitor.

Wrapping up

Charging a capacitor is not as complex as it first seems. This easy-to-understand guide makes sure that every car audio admirer, whether a newbie or a seasoned pro, can safely charge their capacitor with the energy it needs. The choice between a resistor and test bulb, the careful monitoring of voltage, and the emphasis on safety make it an all-in-one roadmap.

We hope you will have a successful charging by following our instructions.
