Not sure how to safely discharge a car audio capacitor? Or feeling overwhelmed by the different techniques out there? Whether you’re a beginner or an experienced installer, this guide has you covered.
I’ve personally explored and tested four reliable methods—two that use a resistor and two that don’t. These are the most practical and beginner-friendly options, designed to give you a clear, hassle-free experience regardless of your skill level.
But before diving into the actual steps, it’s important to get one thing right: your safety. Capacitors store high voltage and can be dangerous if handled improperly. So let’s begin with the essential safety precautions you need to follow before attempting any discharge method.
Table of Contents
Safety Precautions Before You Begin
4 Proven Methods of Discharge a Car Audio Capacitor
There’s more than one way to discharge a car audio capacitor and after testing multiple techniques, I’ve narrowed it down to four reliable methods suited for different tools and situations. Whether you're in a fully equipped garage or doing a quick job, one of these will work for you. So, Let’s go over each method, starting with the safest approach.

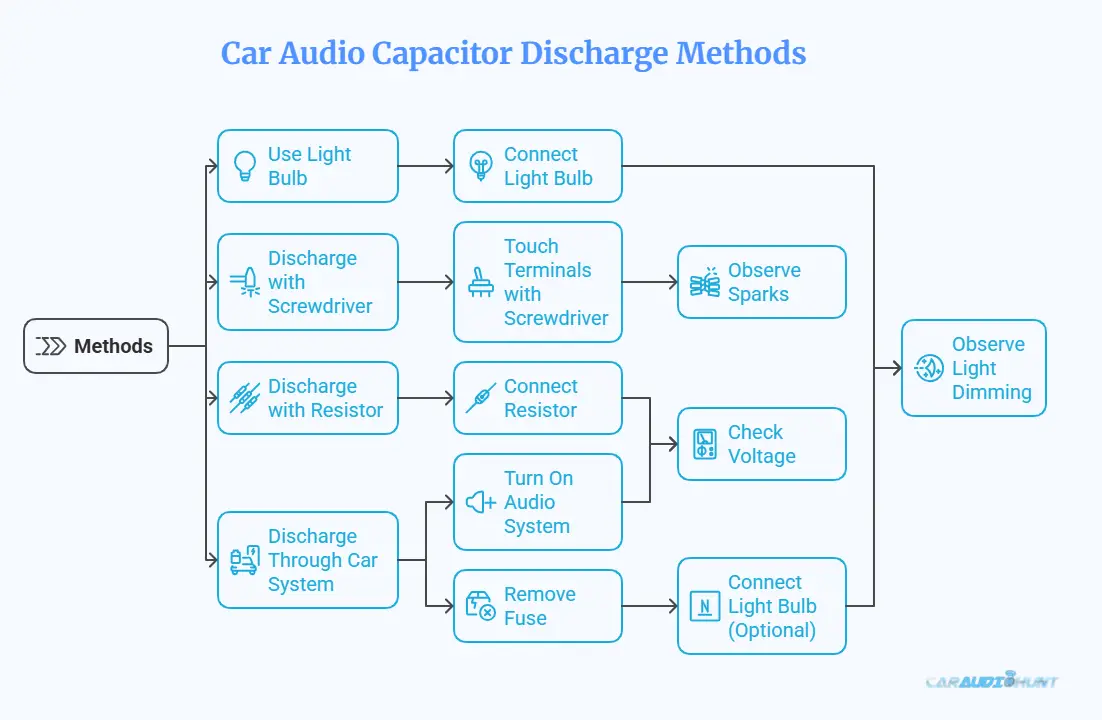

Car Audio Capacitor Discharge Methods Infographic
1. Discharging with a Resistor (Safest & Most Recommended)
This is the most controlled and widely trusted method and the one I use personally. The resistor helps slow down the discharge, preventing sparks, heat, or component damage.
What You'll Need:
- A 20-ohm, 5–10 watt resistor (adjust based on your capacitor’s specs)
- Insulated gloves
- Optional: voltmeter, alligator clips, and 12-gauge wires
Method 1: Simple Manual Discharge
While wearing insulated gloves, connect the resistor directly between the capacitor’s positive and negative terminals. You should see the voltage drop on the display. Once it hits zero or the display turns off, your capacitor is discharged.
Method 2: DIY Discharge Tool
To build a safer and reusable discharging tool, start by cutting two strips of 12-gauge wire, each about 15 to 20 centimeters in length. These wires will serve as connectors between your capacitor and the resistor.
Next, attach each wire to one end of the resistor, ensuring a secure connection. Once connected, wrap the joint with electrical tape to insulate it and prevent any accidental short circuits.
On the opposite ends of the wires, solder an alligator clip to each wire. After soldering, again wrap the exposed area with electrical tape for added safety and durability.
Now, with your tool complete, simply clip one alligator clip to the positive terminal of the capacitor and the other to the negative terminal. The resistor will create a bridge that allows voltage to flow safely from one terminal to the other. Wait a few minutes, then use a voltmeter to confirm that the capacitor is fully discharged.
Pro Tip: Always check voltage before and after discharging to ensure safety.
2. Using a Light Bulb (Safe, with Visual Feedback)
This is My Go-To Visual Method When a Voltmeter Isn’t Available. If you don’t have access to a voltmeter or prefer a more visual approach, using a light bulb is a practical and effective alternative to the resistor method. While it’s not quite as precise, it still provides a safe way to discharge your capacitor especially helpful in basic setups or fieldwork.
How It Works:
After wearing insulated gloves, take a standard 12V automotive light bulb and hold its metal contacts against the positive and negative terminals of the capacitor. If the bulb lights up, it means there's still stored energy.
As the capacitor discharges, the light will begin to fade gradually. Once the bulb dims completely, it indicates that the capacitor’s voltage has dropped to zero, and it's safe to handle.
Remember that, This method is slower than using a resistor, it’s especially useful for those who prefer visual confirmation over voltage readings.
3. Discharging with a Screwdriver (Quick, but Not Recommended)
From experience, I strongly advise against using a screwdriver to discharge a car audio capacitor. It's fast, yes—but also the riskiest method, with a real chance of damaging the capacitor or creating dangerous sparks. That said, if you're in a pinch and have no other tools, here’s how to approach it as safely as possible.
How I’ve Seen It Done (Cautiously):
While fully protected; wearing gloves and eye protection, hold the screwdriver by its insulated handle only. Carefully touch the metal shaft across both the positive and negative terminals at the same time. You’ll likely hear a loud pop or see a spark, which means the energy is discharging instantly.
"I only recommend this method in emergency situations. The lack of resistance makes it unsafe for your equipment and yourself. Always opt for a resistor or light bulb when possible."
4. Discharging Through the Car System (Most Convenient)
When I’m not in a rush or want a low-effort way to drain a capacitor, I often rely on the car’s own electrical system. It’s passive, doesn’t require special tools, and works well if done carefully.
How I Use This Method:
First, I remove the car audio fuse. This step ensures the capacitor won’t recharge during the process. Then I turn on the car’s audio system. Since the capacitor is still connected, it begins to act as a temporary power source, and you’ll see the voltage start to drop gradually on the display.
I keep an eye on the display, and once it goes dark, I know the capacitor is discharged. If I want to double-check, I use a voltmeter for confirmation.
When I’m not using the audio system, I sometimes connect a 12V light bulb to the capacitor’s terminals after pulling the fuse. The bulb lights up and then dims as the charge dissipates—just like in the earlier method.
While this approach takes longer, it’s a safe, low-intervention option that works great for routine discharges or when helping others who are new to car audio.
FAQs
Why is it necessary to discharge a car audio capacitor?
To prevent electric shocks and protect equipment during installation or maintenance.
How long does it take to discharge a capacitor using a resistor?
Typically, a few minutes, depending on the capacitor's size and the resistor's value.
Can I use any resistor to discharge a capacitor?
It's recommended to use a resistor with appropriate resistance and wattage ratings (e.g., 20-ohm, 5-10 watt) to ensure safety.
The Endnote
Discharging a car capacitor is essential before working with it or before relocating it. Otherwise, you may face a severe accident. Discharging requires a delicate process with extreme carefulness to prevent the unwanted quick burst of electricity.
To save you time, I have covered all the essential aspects of the standard approaches. My guide breaks down each method and serves as an easy manual to follow.
